1/3

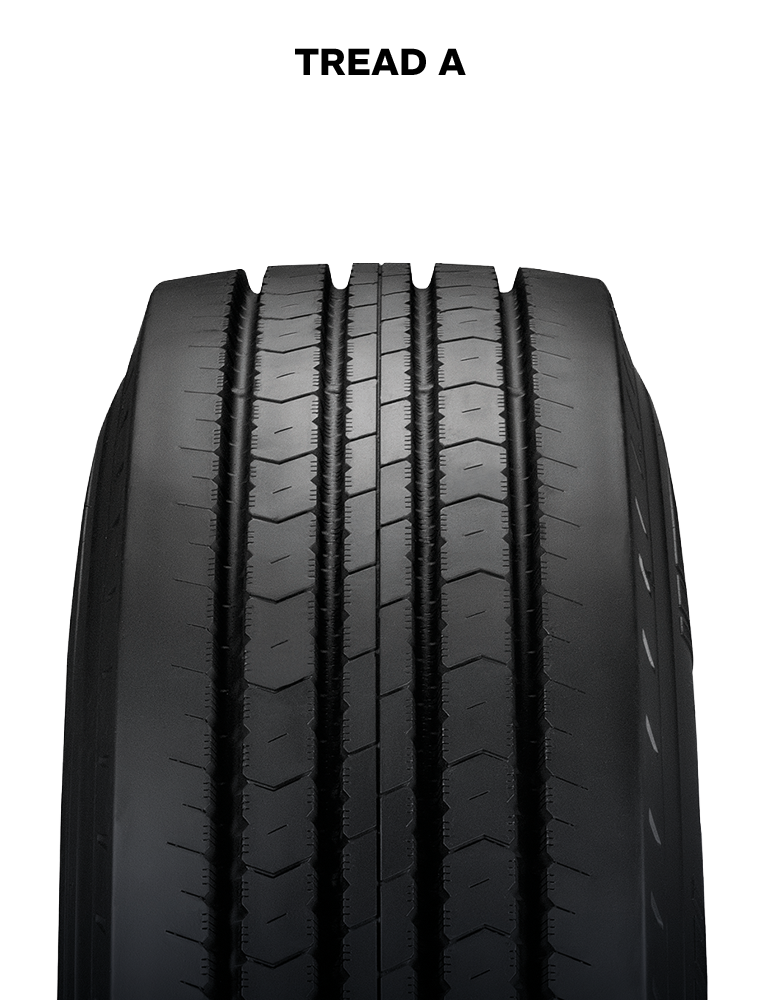

NEXTROAD AP79
Steer/all-position tire with robust shoulder ribs to handle high-scrub operations, deep tread for consistent braking and traction, and durable casing construction supporting excellent retreadability.
Tire Category:
Camiones y autobuses
Construction Type:
TUBELESS RADIAL
Application:
Regional
Wheel Position:
Steer
Vehicle Application
(4 x 2) Day Cab
(6 x 4) Day Cab
Especificaciones
NEXTROAD AP79
| TIRE SIZE | LOAD RANGE PLY RATING | PRODUCT NUMBER | TREAD DEPTH 32NDS (mm) |
MAX SPEED MPH (kph) |
LOADED RADIUS IN. (mm) |
OVERALL DIAMETER IN. (mm) |
OVERALL WIDTH IN. (mm) |
APPROVED RIMS IN. | MINIMUM DUAL SPACING IN. (mm) |
REVS PER MILE RPM (rpk) |
MAX TIRE LOAD | SMARTWAY | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE (lbs./psi) |
DUAL (lbs./psi) |
||||||||||||||
| TIRE SIZE | LOAD RANGE PLY RATING | PRODUCT NUMBER | TREAD DEPTH (mm) |
MAX SPEED (km/h) |
LOADED RADIUS (mm) |
OVERALL DIAMETER (mm) |
OVERALL WIDTH (mm) |
APPROVED RIMS | MINIMUM DUAL SPACING (mm) |
REVS PER KM | MAX TIRE LOAD | SMARTWAY | |||
| SINGLE (kg/kPa) |
DUAL (kg/kPa) |
||||||||||||||
| TUBELESS TIRES ON 15° DROP CENTER RIMS | |||||||||||||||
| 295/75R22.5 | H/16 | 38483 | 18 | 81 | 18.7 | 40.3 | 11.0 | 8.25 9.00 |
13.2 | 516 | 7160/123 | 6610/123 | |||
| 11R22.5 | H/16 | 38485 | 20 | 81 | 19.3 | 41.5 | 11.5 | 8.25 7.50 |
12.5 | 501 | 6610/120 | 6005/120 | |||
| 11R24.5 | H/16 | 38487 | 21 | 81 | 20.3 | 43.5 | 11.2 | 8.25 7.50 |
12.5 | 476 | 7160/120 | 6610/120 | |||
