1/3

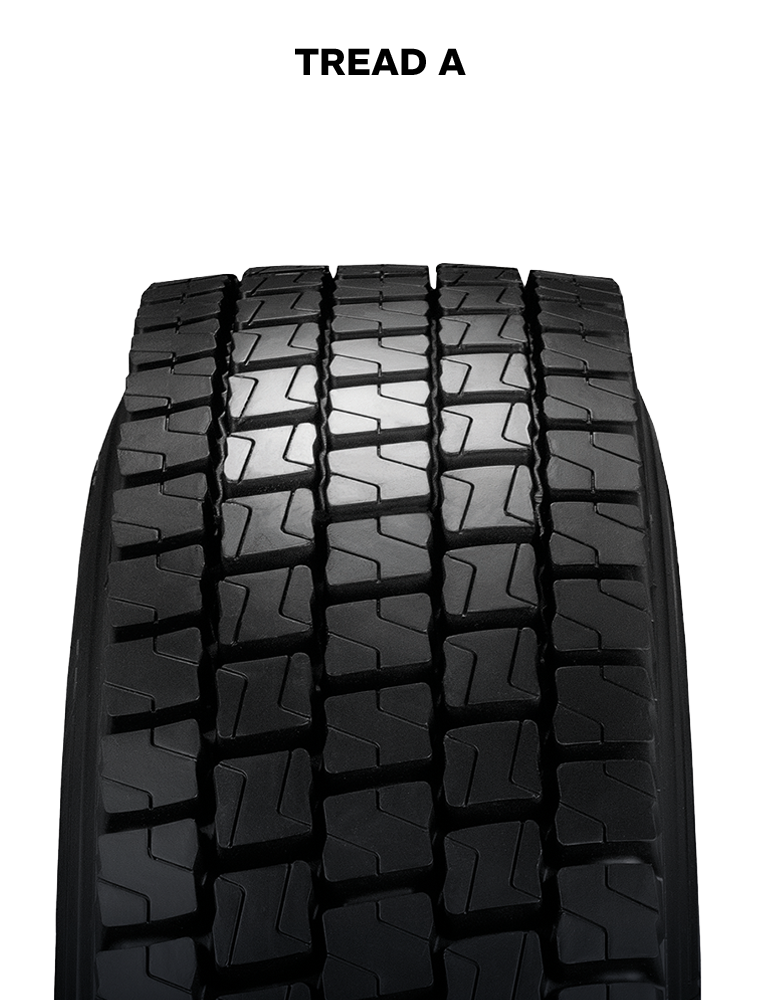

NEXTROAD D79
Open-shoulder drive tire with high-scrub, deep-lug tread delivers strong all-weather traction, high mileage, and long service life, supported by a durable casing designed for multiple retreads.
Tire Category:
Camiones y autobuses
Construction Type:
TUBELESS RADIAL
Application:
Regional
Wheel Position:
Drive
Vehicle Application
(4 x 2) Day Cab
.svg "(4 x 2) Day Cab")
(6 x 4) Day Cab
.svg "(6 x 4) Day Cab")
Especificaciones
NEXTROAD D79
| TIRE SIZE | LOAD RANGE PLY RATING | PRODUCT NUMBER | TREAD DEPTH 32NDS (mm) |
MAX SPEED MPH (kph) |
LOADED RADIUS IN. (mm) |
OVERALL DIAMETER IN. (mm) |
OVERALL WIDTH IN. (mm) |
APPROVED RIMS IN. | MINIMUM DUAL SPACING IN. (mm) |
REVS PER MILE RPM (rpk) |
MAX TIRE LOAD | SMARTWAY | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE (lbs./psi) |
DUAL (lbs./psi) |
||||||||||||||
| TIRE SIZE | LOAD RANGE PLY RATING | PRODUCT NUMBER | TREAD DEPTH (mm) |
MAX SPEED (km/h) |
LOADED RADIUS (mm) |
OVERALL DIAMETER (mm) |
OVERALL WIDTH (mm) |
APPROVED RIMS | MINIMUM DUAL SPACING (mm) |
REVS PER KM | MAX TIRE LOAD | SMARTWAY | |||
| SINGLE (kg/kPa) |
DUAL (kg/kPa) |
||||||||||||||
| TUBELESS TIRES ON 15° DROP CENTER RIMS | |||||||||||||||
| 295/75R22.5 | H/16 | 38484 | 28 | 81 | 19.0 | 40.9 | 11.0 | 8.25 9.00 |
13.2 | 508 | 7160/123 | 6610/123 | ✓ | ||
| 11R22.5 | H/16 | 38486 | 28 | 81 | 19.6 | 42.1 | 11.5 | 8.25 7.50 |
12.5 | 494 | 6610/120 | 6005/120 | ✓ | ||
| 11R24.5 | H/16 | 38488 | 27 | 81 | 20.5 | 43.9 | 11.2 | 8.25 7.50 |
12.5 | 472 | 7160/120 | 6610/120 | ✓ | ||
