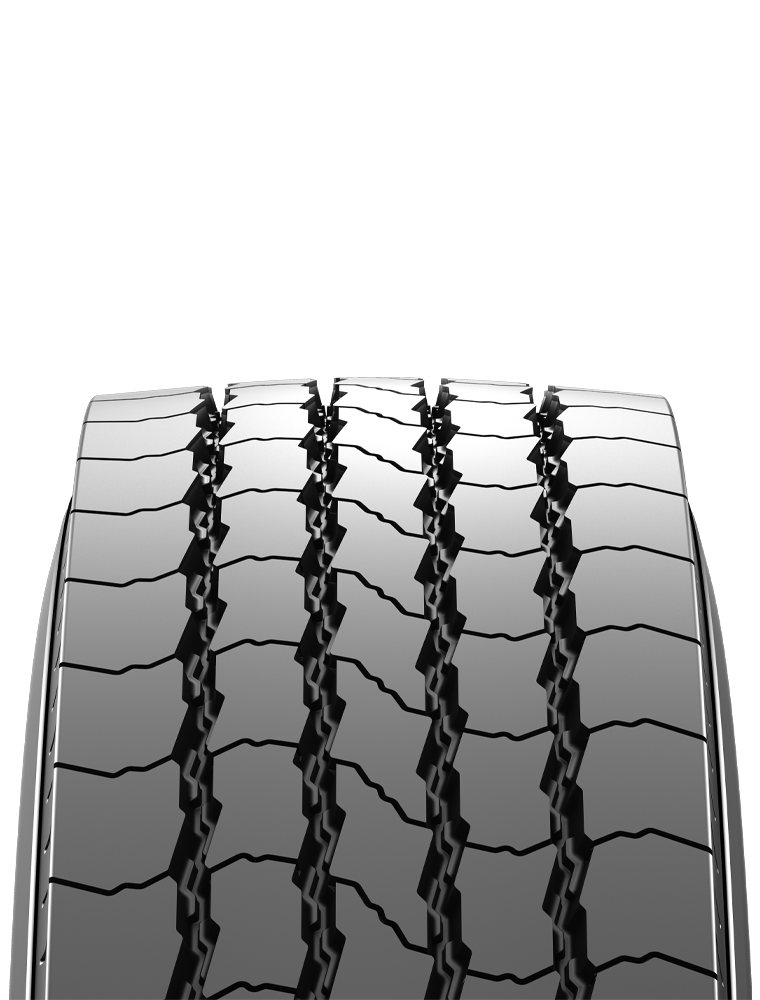

R02 PROFUEL STEER
Durable 19.5" steer all-position tire optimized for last-mile pickup and delivery, featuring curbing protection, high-scrub compound, delivering strong wet traction and long tread life.
Vehicle Application
Low Cab Forward Truck
Shuttle Bus
Utility Bucket Truck
Commercial Pickup Truck
Step Van / Walk-in
Feature & Benefits
Innovative tread geometry with four multi-angle grooves and robust longitudinal ribs enhances braking performance and delivers extended tread mileage. Stone ejectors at the base of every groove prevent stone trapping, supporting long-lasting durability and retreadability.
Innovative tread geometry with four multi-angle grooves and robust longitudinal ribs enhances braking performance and delivers extended tread mileage. Stone ejectors at the base of every groove prevent stone trapping, supporting long-lasting durability and retreadability.
Innovative tread geometry with four multi-angle grooves and robust longitudinal ribs enhances braking performance and delivers extended tread mileage. Stone ejectors at the base of every groove prevent stone trapping, supporting long-lasting durability and retreadability.
Reinforced sidewall ribbing delivers added protection against curb scrubbing during urban pickup & delivery operations, helping maintain casing durability. A built-in sidewall wear indicator offers a simple, reliable way to track sidewall condition, supporting safer operation and timely replacement.
Especificaciones
| TIRE SIZE | LOAD RANGE PLY RATING | PRODUCT NUMBER | TREAD DEPTH 32NDS (mm) |
MAX SPEED MPH (kph) |
LOADED RADIUS IN. (mm) |
OVERALL DIAMETER IN. (mm) |
OVERALL WIDTH IN. (mm) |
APPROVED RIMS IN. | MINIMUM DUAL SPACING IN. (mm) |
REVS PER MILE RPM (rpk) |
MAX TIRE LOAD | SMARTWAY | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE (lbs./psi) |
DUAL (lbs./psi) |
||||||||||||||
| TIRE SIZE | LOAD RANGE PLY RATING | PRODUCT NUMBER | TREAD DEPTH (mm) |
MAX SPEED (km/h) |
LOADED RADIUS (mm) |
OVERALL DIAMETER (mm) |
OVERALL WIDTH (mm) |
APPROVED RIMS | MINIMUM DUAL SPACING (mm) |
REVS PER KM | MAX TIRE LOAD | SMARTWAY | |||
| SINGLE (kg/kPa) |
DUAL (kg/kPa) |
||||||||||||||
| TUBELESS TIRES ON 15° DROP CENTER RIMS | |||||||||||||||
| 285/70R19.5 | H/16 | 40905 | 16 | 75 | 16.2 | 35.1 | 11.4 | 8.25 7.50, 9.00 |
12.5 | 592 | 6615/125 | 6175/125 | ✓ | ✓ | |
| 245/70R19.5 | H/16 | 41335 | 14 | 81 | 15.4 | 33.1 | 10.0 | 7.50 6.75 |
11.0 | 627 | 4940/120 | 4675/120 | ✓ | ✓ | |
| 265/70R19.5 | G/14 | 41337 | 15 | 81 | 15.7 | 34.0 | 10.6 | 7.50 6.75, 8.25 |
11.3 | 611 | 5510/112 | 5205/112 | ✓ | ✓ | |
| 225/70R19.5 | G/14 | 60084 | 16 | 87 | 15.0 | 32.1 | 9.1 | 6.75 6.00 |
10.0 | 646 | 3970/110 | 3750/110 | ✓ | ✓ | |
